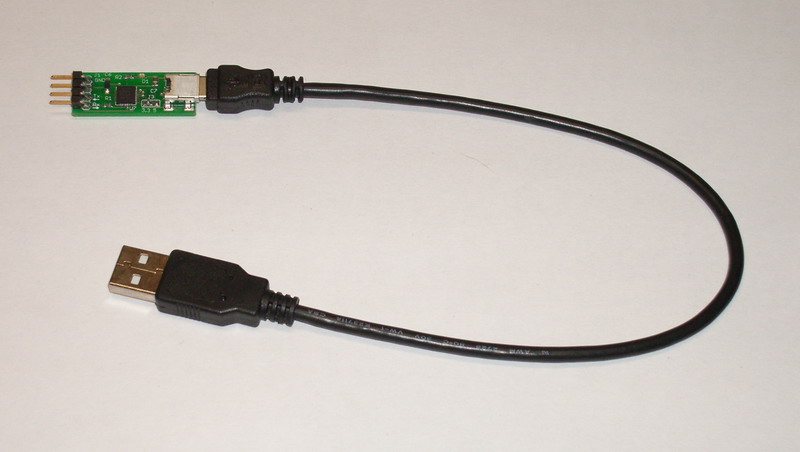

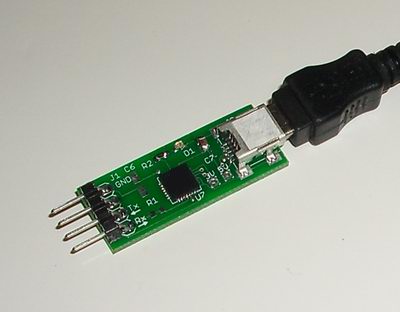

USB to TTL Serial Interface

One end of this cable plugs into your PC's USB port and the other end is a 3.3v TTL serial port. A virtual comm port driver on the PC gives you serial port access to your external device. Use this for interfacing with Hexpert Systems ZLog or PRISM modules or your own microcontroller development projects.

Key Features

Standard PC USB connector.
Virtual Comm Port on PC.
3.3v TTL level serial interface (5v tolerant).
Solder jumper on board to select 3.3v or 5v power output to one
of the output pins to power your project from the USB port.
Up to 500 mA at 5v or 100 mA at 3.3v power from the USB port.
Includes USB cable A - miniB.
1.3" x 0.5" x 0.3" (30 mm x 12 mm x 7 mm).

USB-Serial Cable

USB Drivers
